Element 7 HV

AZ_E70532
DISPLAY SIZE 7 "
SONAR Yes
TRANSDUCER Not included
€620.13
VAT included Check delivery time
Quantity
Out of stock, check availability

Description

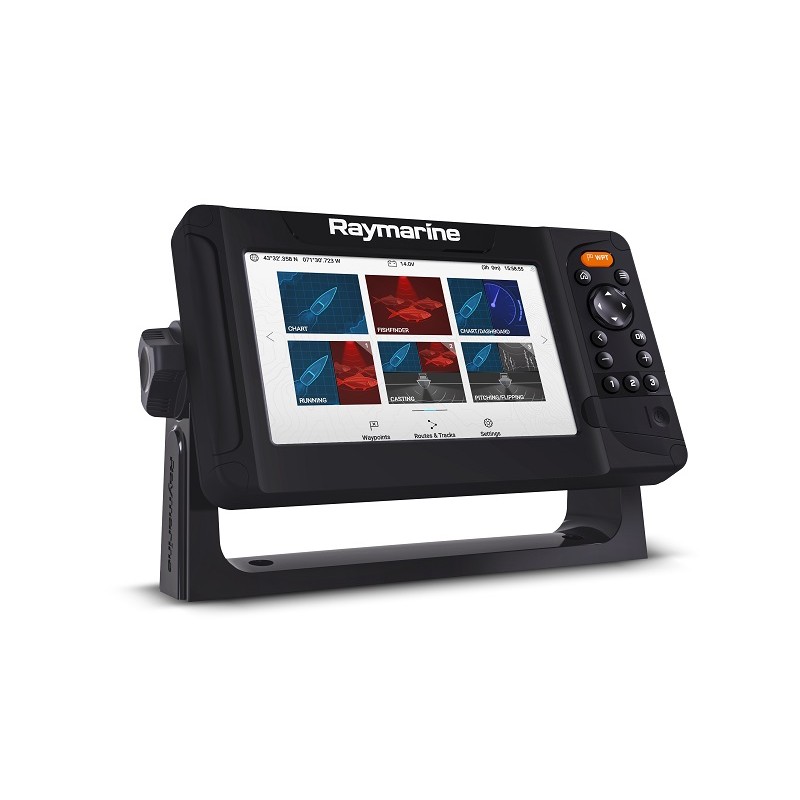

RAYMARINE ELEMENT 7 HV

FISH SMARTER - ABOVE AND BELOW THE WATERLINE

Knowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.

IN THE BOX

1 Trunnion bracket with mounting hardware

2 Surface mount kit with mounting hardware

3 Sun cover

4 Power / NMEA2000 1.5m cable

5 Documentation pack

Product Details
AZ_E70532

Data sheet

MANUFACTURER
Raymarine
PART NO.
E70532
MODEL
Element 7 HV
DISPLAY SIZE
7.0" Optically Bonded LCD
DISPLAY RESOLUTION
800 x 480 WVGA
DISPLAY TIPE
Non-Touch
BRIGHTNESS
1,500 nits
VIEWING ANGLE
Top 50° / Bottom 60° / Left 70° / Right 70°
OVERALL DIMENSIONS
240 x 135 x 62mm
PRODUCT WEIGHT
1.4kg
WATER INGRES PROTECTION
IPx6 and IPx7
VOLTAGE
12V DC (8V to 16V DC)
POWER CONSUMPTION
15 Watts
GPS / GNSS
Built-in GNSS Receiver: GPS/GLONASS
SONAR TYPE (BUILT-IN)
Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)
SONAR CONNECTION
15 pin HyperVision™ type connector
ETHERNET
No
NMEA0183
No
NMEA2000
1 x NMEA2000 port (DeviceNet microC)
J1939
No
SEATALK-NG
Requires A06045 DeviceNet female (F) adapter cable - 400mm
HDMI
No
USB
No
WI-FI
WiFi - 802.11 b / g / n
BLUETOOTH
Bluetooth 4.0 + Low Energy + Power Class 1.5
CARTOGRAPHY
Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
WAYPOINT / ROUTES / TRACKS
5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
INTERNAL MEMORY
8GB Solid State
EXTERNAL MEMORY
1 x microSD slots - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
